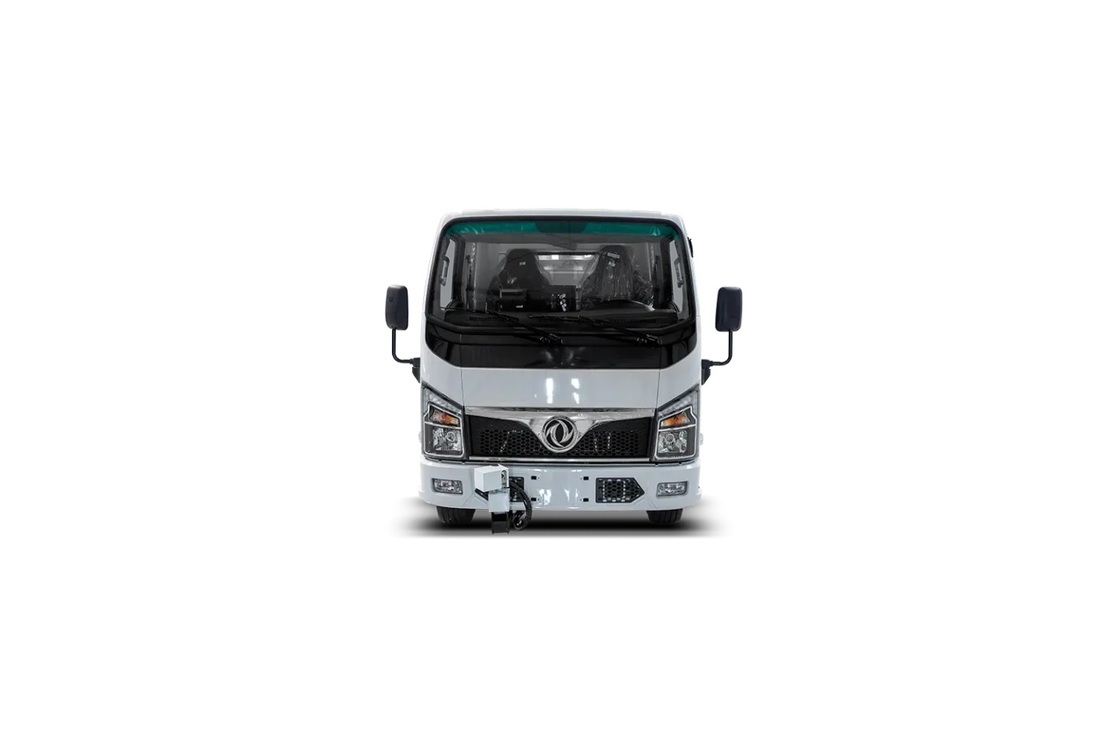

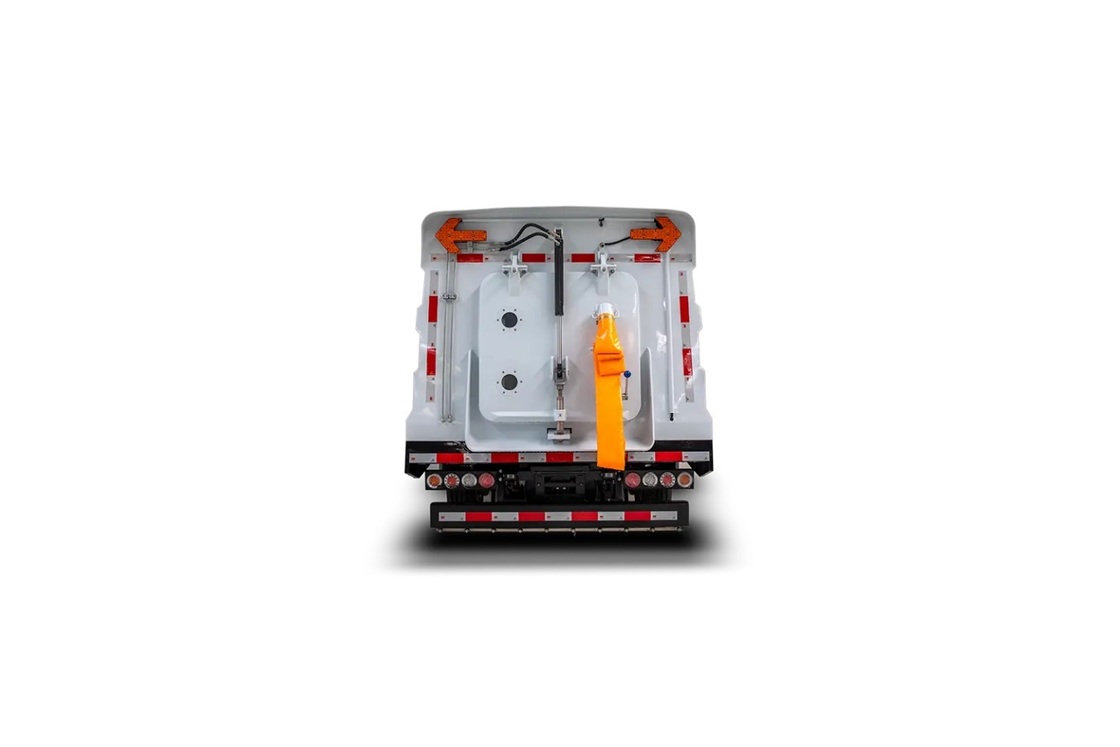

Name: Sanitation Vehicles New Energy Type 7T Washing Sweeper
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL5070TYHDFBEV
Price: 150,100.00 USD
Availability: InStock

Huis > producten > Reinigingsvoertuig >

Sanitation Vehicles New Energy Type 7T Washing Sweeper

New Energy Sanitation Vehicles

Washing Sanitation Vehicles

7T Washing Sweeper

Plaats van herkomst:

CHINA

Merknaam:

XEAZON

Certificering:

ISO 9001

Modelnummer:

CDL5070TYHDFBEV

Neem contact met ons op

Vraag een offerte

Productdetails

Lengte x breedte x hoogte (mm):

5850×1740×2220

Maximaal/leeggewicht (kg):

6550/4800

Chassismerk:

Dongfeng

Volume watertank (m³):

2.2

Veegbreedte (m):

2.6

Uitgebreide bedrijfstijd (u):

≥ 10

Inhoud container (m³):

2.2

Maximumgradiënt:

≥20%

Duurzaamheidskilometers (km):

300 (equivalente snelheidsmethode)

Nominale motor/piekvermogen (kW):

60/120

Nominaal motor-/piekkoppel (N·m):

164/420

Merk/capaciteit accu (kWh):

CATL/105.28

Markeren:

New Energy Sanitation Vehicles

Washing Sanitation Vehicles

7T Washing Sweeper

Betaling & het Verschepen Termijnen

Min. bestelaantal

Levertijd

40-60 werkdagen

Betalingscondities

T/t, l/c

Levering vermogen

25000 eenheden/jaar

VERWANTE PRODUCTEN

Sanitation Vehicles New Energy Type 4.5T Road Maintenance Vehicle

Krijg Beste Prijs

Neem contact met ons op

+8613608032908

jolin@zevauto.com

Contact opnemen

Productbeschrijving

Sanitation vehicles new energy type 7T washing sweeper.

7T washing sweeper widely suitable for urban roads main roads, highways, expressways, bridges, squares, tunnels, airports, docks, towns, and unit communities for cleaning operations.

Key Specifications

Attribute	Value
Product name	Electric Sanitation Vehicle
Type	Zero Emission
Fuel type	Electric
Dimensions (mm)	585017402220
Chassis brand	Dongfeng
Water tank volume (m³)	2.2
Sweeping width (m)	2.6
Comprehensive operating time(h)	more than 10 hrs
Volume of container(m³)	2.2
Maximum gradient	≥20%
Endurance mileage (km)	300(equivalent speed method)
Motor rated/peak power (kW)	60/120
Motor rated/peak torque (N·m)	164/420
Battery brand/capacity (kWh)	CATL/105.28

Key Advantages

Zero emission : Electric type
Maneuverable and flexible: It is very suitable for sweeping and cleaning operation with a minimum turning radius of only 5.5m.
Excellent operation results - Combing sweeping, suction, flushing, which achieves high cleaning rate in a single operation, and it can suck debris with a maximum diameter of 110mm.
Complete operation functions: road surface cleaning, sweeping, curb brushing, dust suppression spraying, and hand held spray gun operation, high pressure spot spray device also optional.
Corrosion resistant container: material is 305 stainless steel, which provides high corrosion resistance and exellent sealing.

Customization Options

Available as electric sanitation vehicle new energy type 7T washing sweeper.

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With research platforms including the enterprise technology center and test center, ZEV operates 2 plants with an annual production capacity reaching 25,000 units. The company offers a 5m-18m product lineup of battery electric buses and coaches covering various segment markets.

In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding from Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
